サファイアの基質
Created with Pixso.

4inch Sapphire Wafer 200um Thickness C Axis Highly Applied for Semiconductor

4inch Sapphire Wafer 200um Thickness C Axis Highly Applied for Semiconductor

ブランド名: ZMSH
型番: 4inchサファイアのウエファー
MOQ: 10ピース
パッケージの詳細: 真空パッケージ
支払条件: T/T
詳細情報
起源の場所:
中国
証明:
RoHS
直径:
4inch
厚さ:
200±15μm
ポリス:
dspかssp
ワープ:
≤ 10um
TTV:
≤ 10um
粗さ:
Ra ≤ 0.2nm
スクラッチ/ディグ。:
20/10
形:
丸型、平型、ノッチ型
ハイライト:

4inch sapphire wafer semiconductor

,

200um thickness sapphire substrate

,

C axis sapphire wafer semiconductor

製品説明

4inch Sapphire Wafer 200um Thickness C Axis Highly Applied for Semiconductor





Product Description:



Sapphire wafers are composed of aluminum oxide (Al₂O₃), in which three oxygen atoms are covalently bonded to two aluminum atoms. They exhibit a hexagonal lattice crystal structure and are commonly cut along the A-plane, C-plane, and R-plane orientations. Owing to their broad optical transparency range, sapphire wafers transmit light from the near-ultraviolet (190 nm) to the mid-infrared wavelengths, making them an ideal choice for optical components, infrared devices, high-power laser windows, and photomask materials. Sapphire wafers are renowned for their high acoustic velocity, high-temperature resistance, corrosion resistance, high hardness, excellent transparency, and high melting point (2045°C). They are a challenging material to process, but are widely used in optoelectronic devices.





Product Parameters:



Diameter: 4inch or 100±0.1mm
Thickness: 200±15um500 ± 15 um,650±15um;
Roughness: Ra ≤ 0.2 nm
Warp: ≤ 10um
TTV: ≤ 10um
Polish: DSP (Double Side Polished); SSP(Single Side Polished)
Shape: Round, Flat, Notch
Wafer Orientation: C Axis
Edge Form: 45°, C shape
Material: Sapphire
Remarks: All specifications above can be customized upon your request.





Product Pictures:

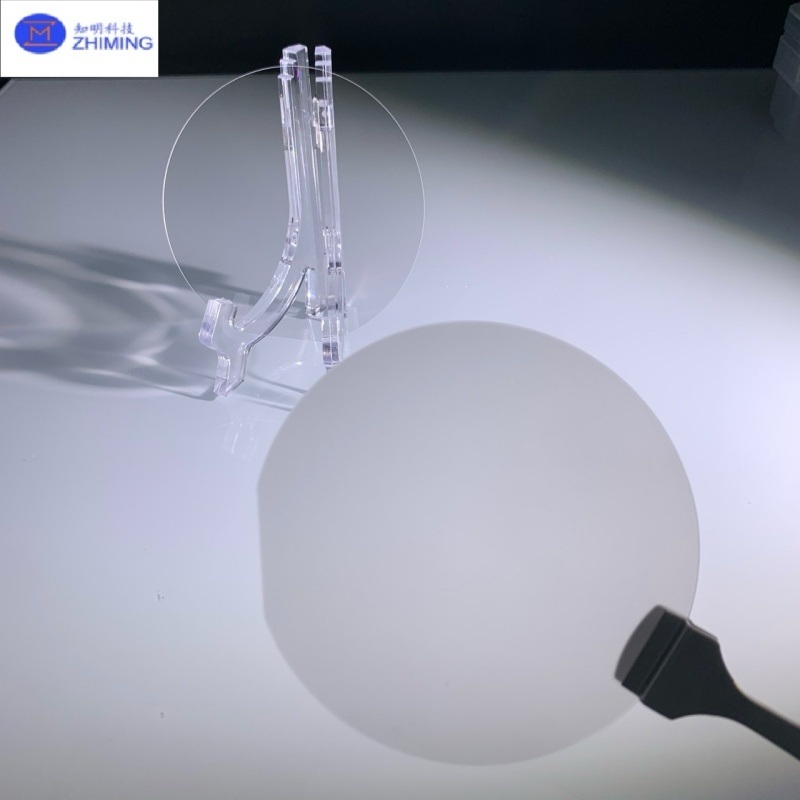

4inch Sapphire Wafer 200um Thickness C Axis Highly Applied for Semiconductor 0





Product Highlights:



* Sapphire wafers are with common crystallographic orientations include C‑plane (0001), A‑plane (11‑20), and R‑plane (1‑102); the choice of orientation tailors optical, mechanical, and epitaxial behavior for specific devices.



* Typical optical transmission spans the near‑UV to mid‑infrared (approximately 0.19–5.5 μm), with high transparency in the 0.3–5 μm range, supporting applications in optics and optoelectronics.



* Mechanical and thermal properties of sapphire wafers include a Mohs hardness of 9, high strength and wear resistance, and a melting point ~2050°C, enabling performance under extreme environments.



* Chemical stability of sapphire wafers is excellent—resistant to most acids and alkalis—with notable attack only by HF, phosphoric acid, and molten KOH at elevated temperatures.



* Representative applications of sapphire wafers: LED substrates (GaN on sapphire), infrared and laser windows, optical components, and wear‑resistant covers in consumer electronics.







Related Product Recommendation:



150mm 6 Inch Sapphire Substrate Al2O3 DSP Ssp 1.0mmt For Led PSS Customized

4inch Sapphire Wafer 200um Thickness C Axis Highly Applied for Semiconductor 1



Q&A:



Q: What is a sapphire wafer?



A: A sapphire wafer is a circular thin slice made of sapphire material, which is widely used in the manufacturing of semiconductors and optical devices.



Q: What size are sapphire wafers?



A: 2inch, 3inch, 4inch, 6inch, 8inch, 12inch.



Q: How to cut a sapphire wafer?



A: Cutting a sapphire wafer requires specialized methods due to its extreme hardness (9 on the Mohs scale, second only to diamond) and brittleness. The core approach relies on abrasive-based or laser-based techniques to achieve precise, low-damage cuts.
